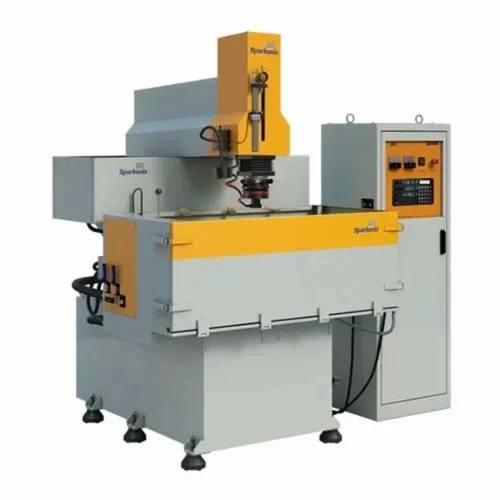

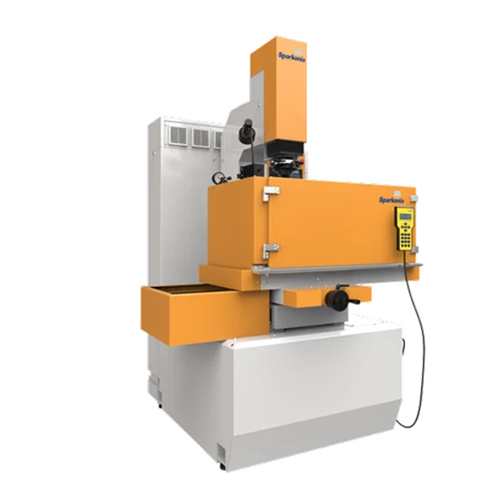

SPARK EROSION - EDM MACHINE S 50 MICRO
Product Details:
- Operating Type Manual
- Dimension (L*W*H) 900*550*375 Millimeter (mm)
- Weight (kg) 1250 Kilograms (kg)
- Color Yellow
- Click to View more
X
SPARK EROSION - EDM MACHINE S 50 MICRO Product Specifications
- 1250 Kilograms (kg)
- Yellow
- Manual
- 900*550*375 Millimeter (mm)
Product Description
Specification
| Minimum Order Quantity | 1 Number |
| Daylight (with Electrode Holder) | 385 MM |
| Die Electric Tank | 240 LTRS |
| Display | Hand Pendant with digital display |
| Filtration Vertical | 10 u - 2 No |
| Machine Floor Area | 1300 x 1700 MM |
| Max. job Height | 325 MM |
| Max. job weight | 500 KGS |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Pump Motor | 0.5 HP |
| Shut Height | 135 MM |
| Work Table | 600*400 MM |
| X Travel | 350 MM |
| X & Y Axis | LM Guideways |
| Y TRAVEL | 250 MM |
| Z TRAVEL | 250 MM |
| Country of Origin | Made in India |
| Machine Type | SPARK EROSION - EDM MACHINE |
| Work Tank Dimension | 900*550*375 MM |
| Automation Grade | Manual |
| Weight | 1250 |
| Model Name/Number | S 50 MICRO |
| Brand | SPARKONIX |
