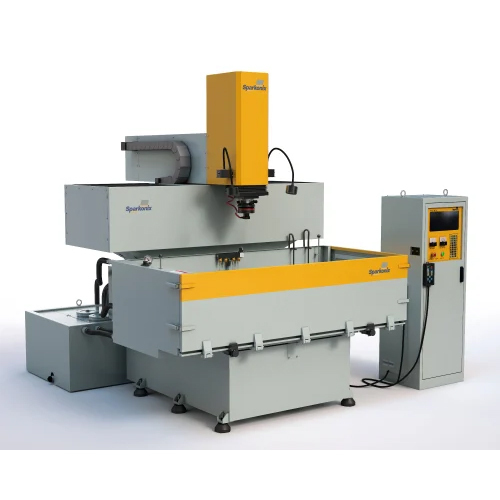

SPARK EROSION - EDM MACHINE MY EDM MICRO
Product Details:
- Operating Type Manual
- Dimension (L*W*H) 2000*1000*400 Millimeter (mm)
- Weight (kg) 2800 Kilograms (kg)
- Color Yellow, Grey
- Click to View more
X
SPARK EROSION - EDM MACHINE MY EDM MICRO Product Specifications
- 2800 Kilograms (kg)
- Manual
- Yellow, Grey
- 2000*1000*400 Millimeter (mm)
Product Description
Product details
| Daylight (with Electrode Holder) | 820 MM |
| Die Electric Tank | 1280 KGS |
| Di - Electric Tank | Seperate |
| Display | Hand Pendant with digital display |
| Machine Floor Area (Machine) | 3300*3000 MM |
| Max. job Height | 600 MM |
| Max. job weight | 4500 KGS |
| Motor for X/Y Travel | AC servo Motor with Drive |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Pump Motor | 0.5 HP |
| Shut Height | 420 MM |
| Work Table | 1200*800 MM |
| X Travel | 1200 MM |
| X & Y Axis | LM Guideways |
| Y Travel | 600 MM |
| Z Travel | 400 MM |
| Country of Origin | Made in India |
| Machine Type | SPARK EROSION - EDM MACHINE |
| Work Tank Dimension | 2000*1000*400 MM |
| Automation Grade | Manual |
| Weight | 2800 KGS |
| Model Name/Number | MY EDM MICRO |
| Brand | SPARKONIX |
