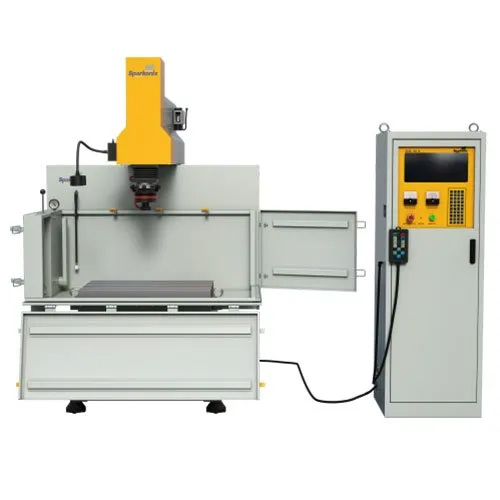

SPARK EROSION - EDM MACHINE F 65 Micro Manual

Get a Price/Quote

Product Details:

Operating Type Manual
Dimension (L*W*H) 1500 X 800 X 500 Millimeter (mm)
Weight (kg) 2000 Kilograms (kg)
Color Yellow Grey
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

SPARK EROSION - EDM MACHINE F 65 Micro Manual Product Specifications

Color Yellow Grey
Weight (kg) 2000 Kilograms (kg)
Operating Type Manual
Dimension (L*W*H) 1500 X 800 X 500 Millimeter (mm)

Product Description

Product details

Dielectric Tank	840 Liters
Di - Electric Tank	SEPERATE
Display	Hand Pendant with digital display
Filtration Vertical	10 u - 4 No
Max. job Height	400 MM
Max. job weight	3500 KGS
Motor for X/Y Travel	AC servo Motor with Drive
Net Weight	2000 Kg
Power Supply	415V, 3 Phase, 50 Hz
Pump Motor	0.5 HP
Shut Height	285 mm
Throat Max	540 mm
Throat Min	135 mm
Work Table	1000 X 600 mm
Work Tank	1500 X 800 X 500 mm
X Travel	800 MM
X & Y Axis	LM Guideways
Y Travel	500 MM
Z TRAVEL	250 MM
Country of Origin	Made in India
Machine Type	SPARK EROSION - EDM MACHINE
Automation Grade	Manual
Weight	2000 KG
Brand	Sparkonix
Model Name/Number	EDM Spark Machine F 65 Plus Micro
