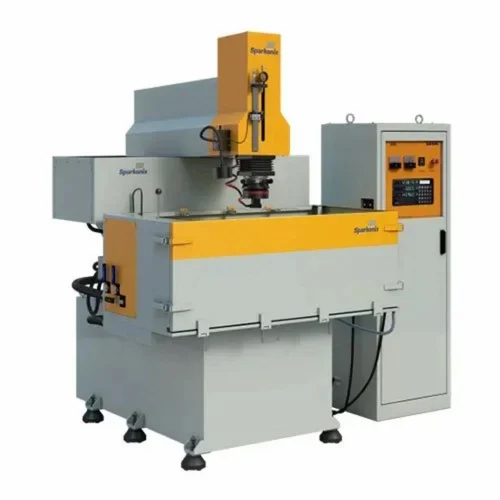

SPARK EROSION - EDM MACHINE F 50 Micro Manual
Product Details:
- Operating Type Manual
- Dimension (L*W*H) 1200 X 600 X 450 Millimeter (mm)
- Weight (kg) 1600 Kilograms (kg)
- Color Yellow ,Grey
- Click to View more
X
SPARK EROSION - EDM MACHINE F 50 Micro Manual Product Specifications
- Manual
- Yellow ,Grey
- 1200 X 600 X 450 Millimeter (mm)
- 1600 Kilograms (kg)
Product Description
Product details
| Daylight (with Electrode Holder) | 535 MM |
| Dielectric Tank | 540 Liters |
| Di - Electric Tank | Built-in Type |
| Display | Hand Pendant with digital display |
| Filtration Vertical | 10 u - 2 No |
| Machine Floor Area (Machine) | 2200 x 1750 MM |
| Max Job Height | 400 mm |
| Max. job weight | 2000 KGS |
| Motor for X/Y Travel | AC servo Motor with Drive |
| Net Weight | 1600 Kg |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Pump Motor | 0.5 HP |
| Shut Height | 285 MM |
| Throat (Max) | 440 MM |
| Throat (Min) | 135 MM |
| Work Table | 800 X 500 mm |
| Work Tank | 1200 X 600 X 450 mm |
| X Travel | 500 |
| X & Y Axis | LM Guideways |
| Y Travel | 300 |
| Z TRAVEL | 250 |
| Country of Origin | Made in India |
| Automation Grade | Manual |
| Brand | Sparkonix |
| Model Name/Number | EDM Spark Machine F 50 Plus Micro |
