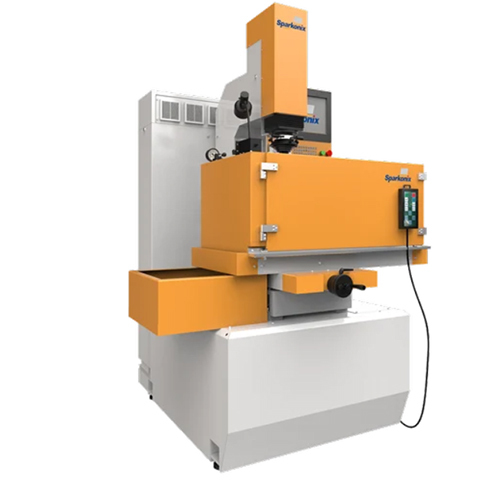

SPARK EROSION - EDM MACHINE S 50 ZNC
Product Details:
- Dimension (L*W*H) 900*550*375 Millimeter (mm)
- Weight (kg) 1250 Kilograms (kg)
- Color Yellow
- Click to View more
X
SPARK EROSION - EDM MACHINE S 50 ZNC Product Specifications
- 1250 Kilograms (kg)
- Yellow
- 900*550*375 Millimeter (mm)
Product Description
Product details
| Daylight (with Electrode Holder) | 295 MM |
| Die Electric Tank | 210 LTRS |
| Filtration Vertical | 10 u - 2 No |
| Machine Floor Area | 1500*1200*2000 MM |
| Max. job Height | 275 MM |
| Max. job weight | 300 KGS |
| Pump Motor | 0.5 HP |
| Shut Height | 95 MM |
| Work Table | 600*400 MM |
| X Travel | 350 MM |
| X & Y Axis | LM Guideways |
| Y Travel | 250 MM |
| Z Travel | 250 MM |
| Country of Origin | Made in India |
| Machine Type | SPARK EROSION - EDM MACHINE |
| Work Tank Dimension | 900*550*375 MM |
| Automation Grade | Automatic |
| Weight | 1250 KGS |
| Model Name/Number | S 50 ZNC |
| Brand | SPARKONIX |
Important Features:
- Single Part, Integral & Compact Design Duly Stress Relieved Structure
- X, Y, Z with LM Guideways
- Dist. Between 2 T Slots 100mm max.
- Ball Screws for X, Y, Z Axis, Double Nut System
- Vertical 10 Micron Filtration System
- Double Door Work Tank
EDM Pulse Generator:
- Maximum Current: 50 Amps ZNC
- Input Power Supply: 3 -Phase AC 415 V,50 HZ
- Connected Load: 5 KVA
