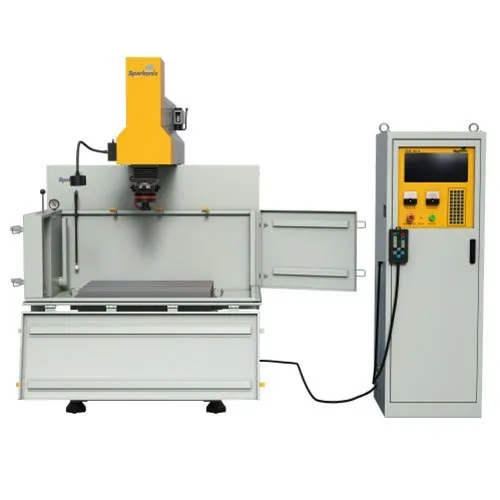

SPARK EROSION - EDM MACHINE F 65 Plus ZNC
Product Details:
- Power 7 Watt (w)
- Dimension (L*W*H) 1500*800*500 Millimeter (mm)
- Weight (kg) 2000 Kilograms (kg)
- Click to View more
X
SPARK EROSION - EDM MACHINE F 65 Plus ZNC Product Specifications
- 2000 Kilograms (kg)
- 7 Watt (w)
- 1500*800*500 Millimeter (mm)
Product Description
Product details
| Daylight with Electrode Holder | 535 mm |
| Die Electric Tank | 900 L |
| Di - Electric Tank | Seperate |
| Display | 18" LED |
| Display Size | 18'' LED |
| Filtration Vertical | 10 u - 4 No |
| Floor Area | 555*1000 mm (Controller) |
| Machine Floor Area | 2500*2600*2150 mm |
| Max Job Height | 400 mm |
| Max Job Weight | 3500 Kgs |
| Motor for X/Y Travel | AC servo Motor with Drive |
| Net Weight | 2000 Kgs |
| Power | 7 KVA |
| Power Supply | 415V,3 Phase,50 Hz |
| Pump Motor | 0.5- 2 HP |
| Shut Height | 285 mm |
| Warranty | 1 Year |
| Work Table Size | 1000*600 mm |
| Work Tank Size | 1500*800*500 mm |
| X Travel Size | 800 mm |
| X & Y Axis | LM Guideways |
| Y Travel Size | 500 mm |
| Z Travel Size | 250 mm |
| Country of Origin | Made in India |
| Brand | Sparkonix |
| Model Name/Number | EDM Spark Machine F 65 Plus ZNC |
